详细说明
10k 流明亮度 - 适合现在和未来

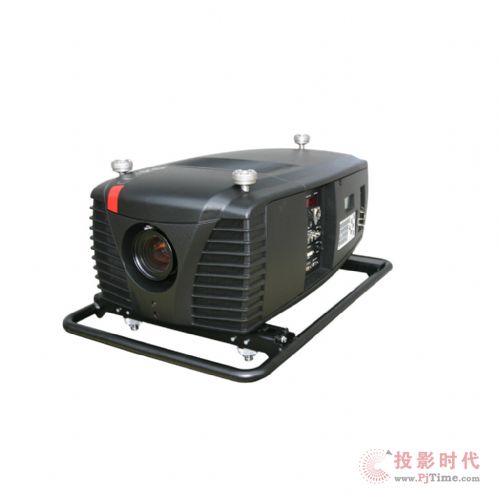

借助密封式引擎和 DLP 技术，CLM R10+ 可实现亮度、锐丽且一致的图像 － 即使使用多年以后－ 无需昂贵耗时的维护。 DLP 一流图像质量
高性能单片设计基于与 FLM R20+ 相同的最新技术，后者为巴可屡获大奖的摄影机产品。 坚固耐用 - 便于运输
CLM R10+ 配备坚固的全金属底盘，确保最高可靠性，自带安装工具，可轻松快速地进行安装。 紧凑、低噪音和轻量
外形紧凑、重量轻且噪声低，CLM R10+ 实为中小型场合的理想解决方案。 高价值
CLM R10+ 价格与许多高亮度 LCD 投影机相当，但具有全部 DLP 技术优势，真正定义投影新理念
| 光输出 |
|
| 分辨率 |
1400 x 1050 (native, SXGA+) |
| 亮度均匀性 |
> 85% |
| 对比度 |
|
| 显示器 |
1 Chip DLP SXGA+ (resolution of 1400 x 1050 pixels (aspect ratio 4:3)) |
| 特性 |
- DMX512 control of optical dimming, electronic dimming, zoom, focus, lens shift, input select
- Advanced picture-in-picture
- Seamless switching with effects
- Rigging points
- Carrying handle
- Frame
- Brilliant Color processing
|
| 画中画 |
two sources simultaneously |
| 输入 |
Standard inputs
- configurable 5 cable (BNC)
- DVI
|
| 通信 |
- 1x RS-232C/RS-422 IN (D-9 connector)
- 1x RS-232C/RS-422 OUT (D-9 connector)
- 1x RS-232C IN (XLR connector)
|
| 兼容性 |
- All current video sources (PAL, SECAM, NTSC) in Composite, S-VHS, Component or RGB formats
- All currently proposed HDTV, extended and improved television standards (1080i, 720p)
- All computer graphics formats from VGA, SVGA, XGA, SXGA,full HD to UXGA
- Most Macintosh computers
- Electronic workstations with a resolution up to 1600 x 1200 pixels at 75 Hz
- Most computer sources with a pixel clock up to 200 MHz
- DVI sources up to SXGA+
|
| 输入信号容量 |
1600 x 1200 (max. input) |
| 网络连接 |
|
| 周围温度 |
Max 40°C (104°F) |
| 灯泡 |
|
| 镜头 |
|
| 镜头移动 |
Vertical: -20% to +110%
Horizontal: 15% to -100%
(small differences occur per lens type)
Note: no lens shift on QCLD lenses. |
| ScenergiX |
Standard horizontal and vertical electronic edge blending |
| 封装DLP?内核 |
Standard |
| 防尘滤网 |
High density filters |
| 噪音级别 |
51.4 dB(A) (at 25°C ambient) |
| 安全级别 |
EN 60950-1 ( for Europe)
UL 60950-1 (for USA) |
| 入力电压 |
100-120/200-240V 12/8A 50/60Hz |
| 功率消耗 |
|
| 重量 |
31 kg excl. lens and rigging frame |
| 维数 |
|
| 电磁干扰 |
Complies with FCC rules & regulations, part 15 Class A and CE EN55022 Class A |
| 订购信息 |
R90501001 |
|
